Saddleback Bike Rack - Surface Mount - SRP Series

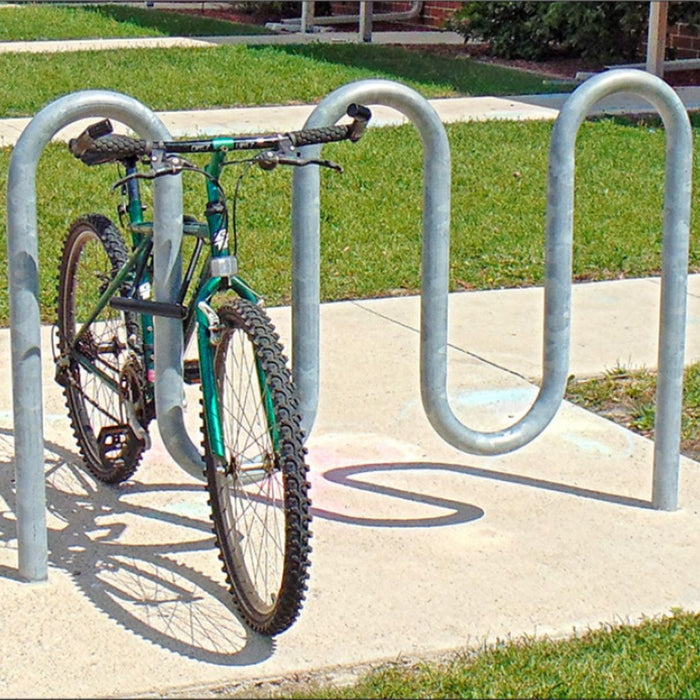

Model SRP Saddleback Bike Rack incorporates a graceful, continuous loop design.  It will accommodate all types of bikes and all popular locking devices.

Model SRP Saddleback Bike Racks are SURFACE mounted by means of a bolt down base plate.

This bike rack can mount a bicycle at each end, plus a bike in each ascending or descending loop.  Models are available to park from 3 to 13 bikes.

Specifications:

MATERIALS: The Saddleback Bike Rack is formed using heavy gauge 2-3/8" OD Schl. 40 steel pipe.

LENGTH:
     3 Bikes - 14" (nom.)
     5 Bikes - 38" (nom.)
     7 Bikes - 62" (nom.)
     9 Bikes - 86" (nom.)
    11 Bikes - 110" (nom.)
    13 Bikes - 134" (nom.) - will have 3 legs for support

Note: Saddleback Bicycle Racks feature a nominal 12" center to center between loops.  Listed lengths are nominal and may vary due to bending tolerances.

INSTALLATION: Model SRP is surface mounted with bolt-down base plates (Anchor bolts not included).  Two-section aluminum cover caps are included (the finish will match the bike rack).

FINISH: Hot dip galvanized finish for maximum protection.  Or choose powder coat paint finish in your choice of colors.

OPTIONAL: Model ANC3-4 set of (4) 3/8" dia. x 3" heavy-duty screw anchors for concrete surface.
